Mini LED RGB RF Wifi Controller

Brand: Led Spektar

Model: Mini LED Wifi RF

Type: Wireless Controller

Description:

A device with a remote control, wireless signal.

It allows wireless control of LED installations.

4096 levels of gray.

Dynamic change of control modes.

With innovative design.

One receiver is compatible with six different functions of the remote control.

A receiver can perform dimming, control of color temperature and RGB control.

Parameters of the product:

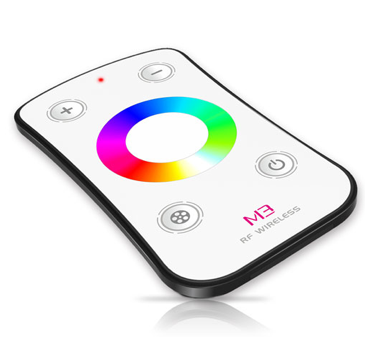

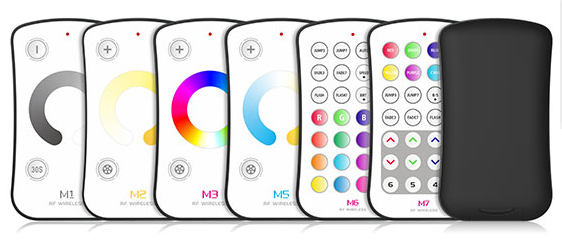

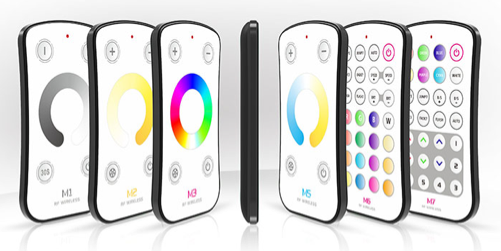

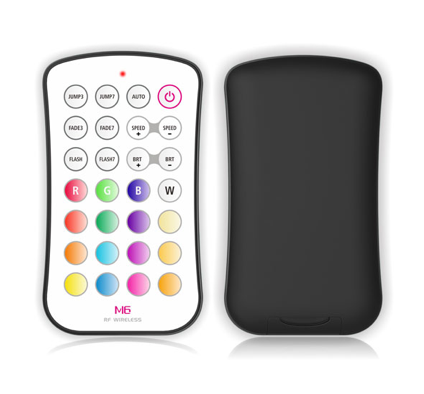

M1, M2, M3, M5, M6, M7 Remote

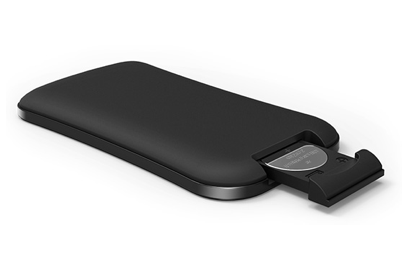

Operating voltage DC3V (CR2032 battery)

Operating frequency 433,92 MHz

Distance of remote control: 40-50 meters

Working rate. -20 ℃ ~ 55 ℃

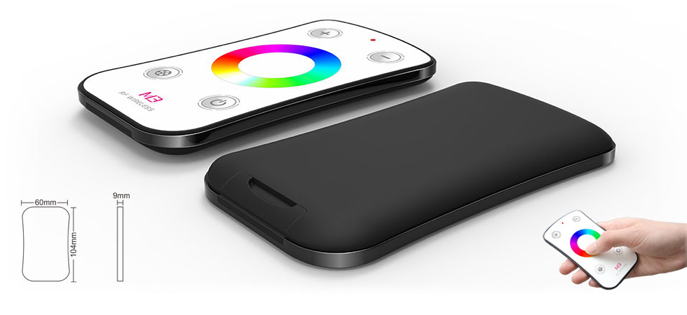

Dimensions L104 × W60 × H9mm

Weight: 42 g

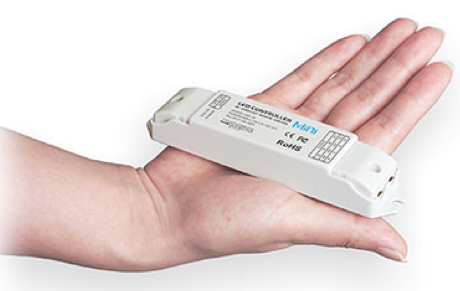

M3-3A receiver

Power consumption: DC12V-DC24V
Maximum voltage: 3A Max load × 3CH
Power: 108W / 216W Max Output: (12V / 24V)

Compatible remote controls: M1 / ​​M2 / M3 / M5 / M6 / M7

Level of gray: Max 4096 × 4096 × 4096
Operating temperature: -30 ℃ ~ 55 ℃
Dimensions L135 × W30 × H20mm
Weight: 47 g

Kit weight: 120 g

Product features:

Dimming

RGB

Control of color temperature

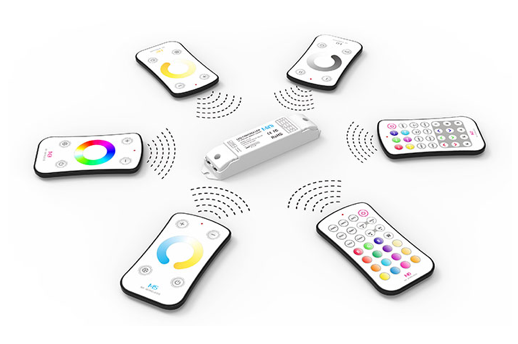

One receiver supports six different remote control functionality.

One receiver can be controlled by 10 identical or different remotes (izpolva mostly in dimmer).

Remote control with RF radio frequency.

Without difficulty from physical objects in the implementation of wireless commands.

Low power consumption - CR2032 batteries.

Application: Suitable for wireless control of LED lighting.
