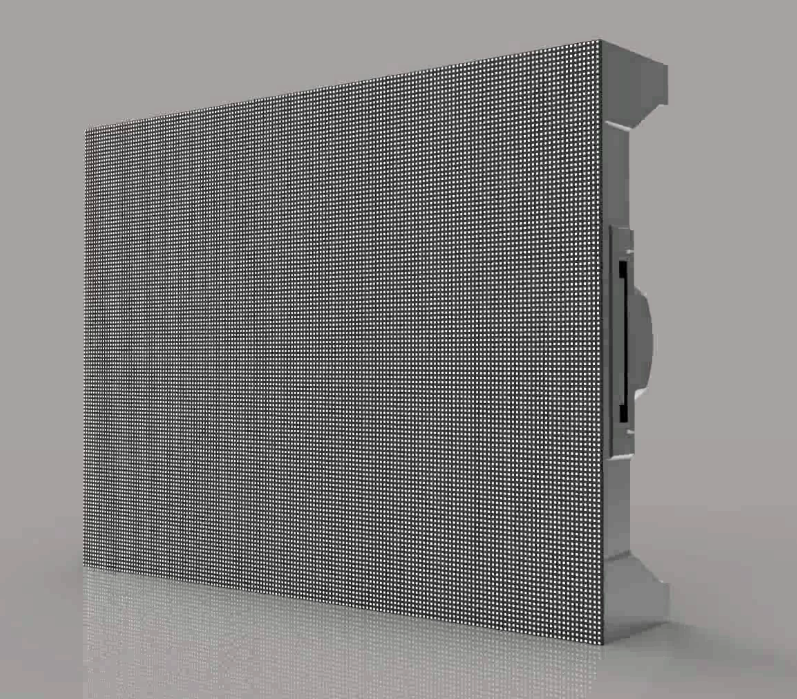

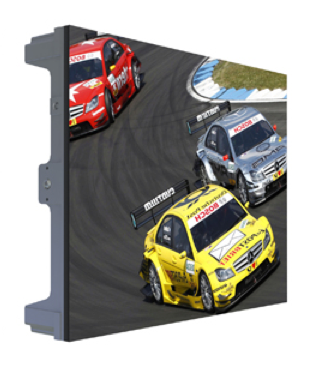

HD LED display P2.5

Brand: LED SPEKTAR

Model: PH2.5

Type:HD Indoor instalations

Description: HD LED display with exceptional picture quality, even when the brightness is reduced below 25%. Seamless connections, quick splice connectors, alloy super thinner body, patented cooling system (fanless, noise-free), high energy efficiency and high refresh rate are just a few of the benefits of one made with environmentally friendly and energy saving parts display. Guarantee for high quality are warning systems failures and adjustable brightness of each point of a picture. Viewing angle vertically and horizontally 160 ° / 160 °. This super display is used for installation in public institutions, subway stations, airports, display systems for many pretsizna information data, photo exhibitions, conference rooms and more.

Characteristics:

Pixel Pitch: 2.5 mm
Pixel density: 160000pixels / m?
LED Type: SMD1010
LED Wavelength: R: 620-625 / G: 517.5-520 / B: 465-467.5
LED light intensity: R: 100 ~ 130 / G: 120 ~ 156 / B: 20 ??~ 26
Viewing Angle: 120 °
Brightness: 1000cd / m?
Driving method: 1/30 scan
Driving IC: SUM2032 (High refresh rate and grayscale)
Color Depth: 16bit
Refresh rate: 2000Hz
Frame rates: ?60Hz
Brightness Adjustment: Automatic / Manual

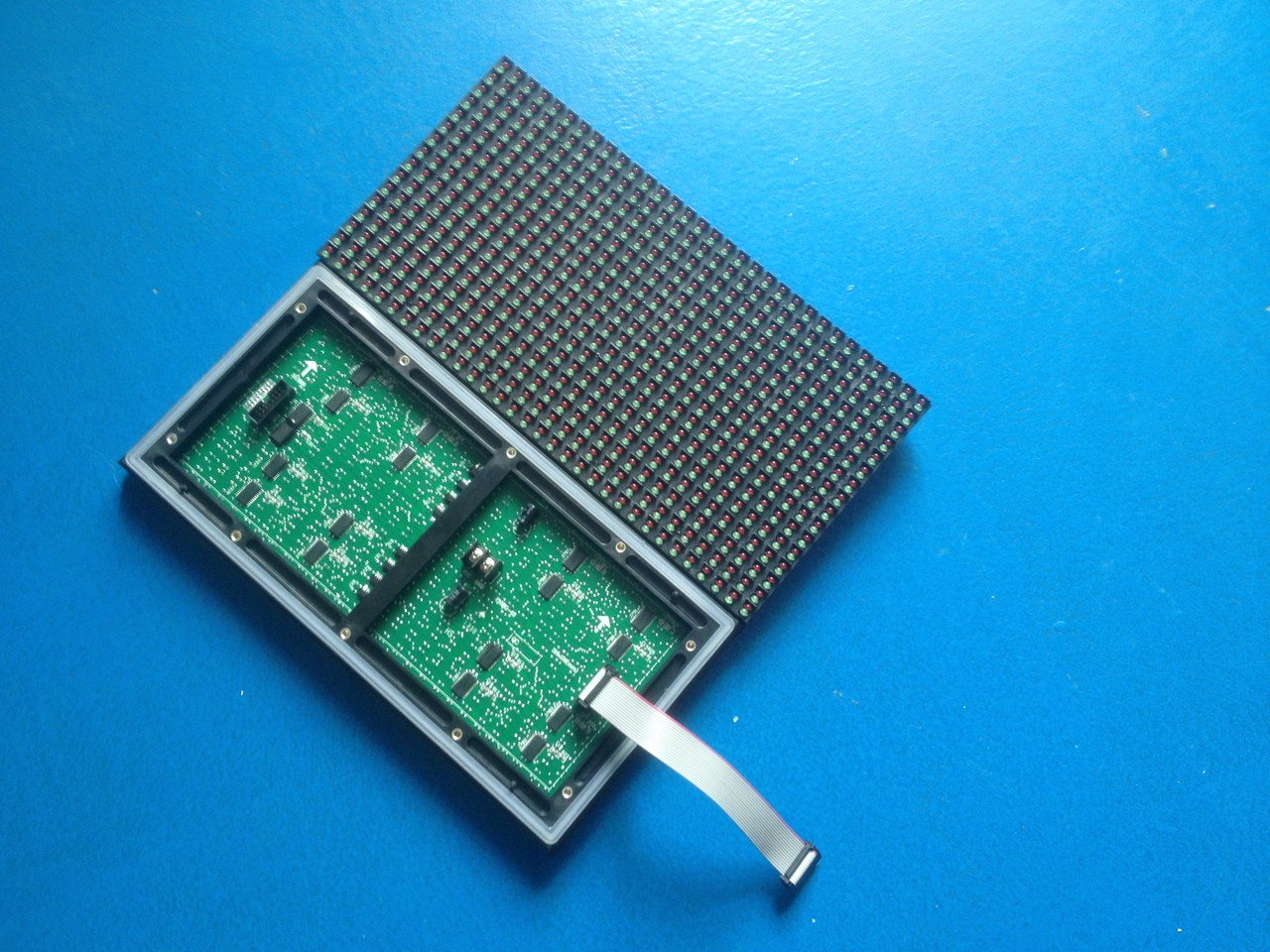

Size modules: 200h150 mm
Resolution of the module: 80 x 60 pixels

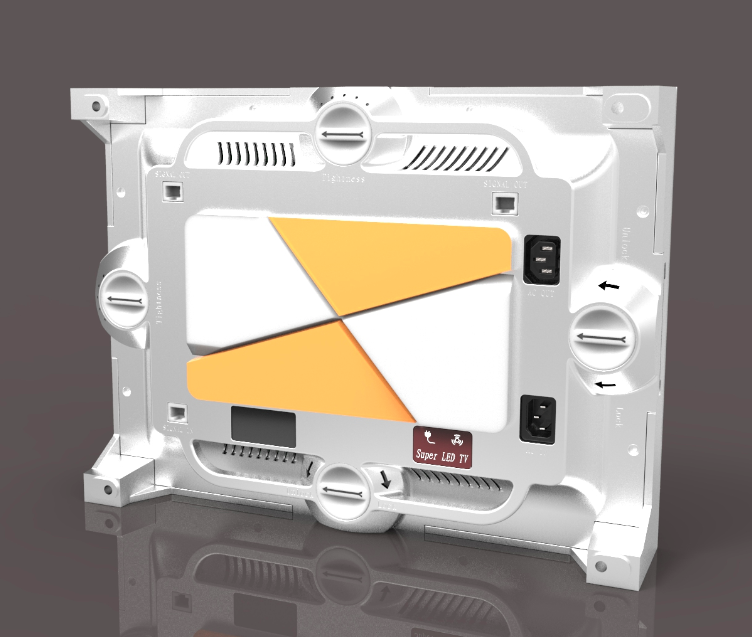

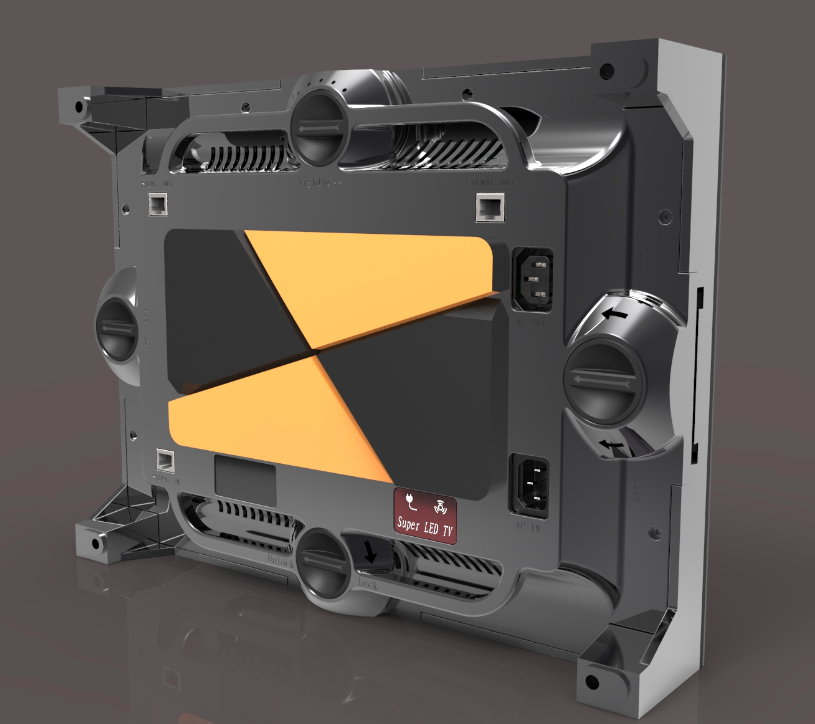

Size of the Cabinet: 400 x 300 mm
Resolution of the Cabinet: 160 x 120 pixels
Material: Cast aluminum
Cabinet weight: 4.5 kg
Power: 5.0V 40A
Voltage: AC 86 ~ 264V
Average power consumption: 450W / m?
Maximum power consumption: 1000W / m?
Access to services: Rear access
IP: IP31
Operating temperature / humidity: -20 ? ~ 50 ?, 10 ~ 90% RH
Temperature / Humidity Storage: -40 ? ~ 60 ?, 10 ~ 90% RH
Life expectancy: ?50000 hours
Control system: NOVA / LINSN
Compatible standards: CCC, CE

Application: Conference rooms, salons, indoor locations with high traffic of people, airports, subway stations, banks, hospitals, government financial institutions, control systems and navigation, and other fashion houses.
